TopWater Config TW2
TopWater Config TW2
Download CAD drawings
Please download the configuration's CAD drawings to incorporate them into your project.
Configuration Information
Configuration pre-installation checklist
Cabinet dimensions
Minimum under-counter space required: W500 mm x D500mm x H700mm

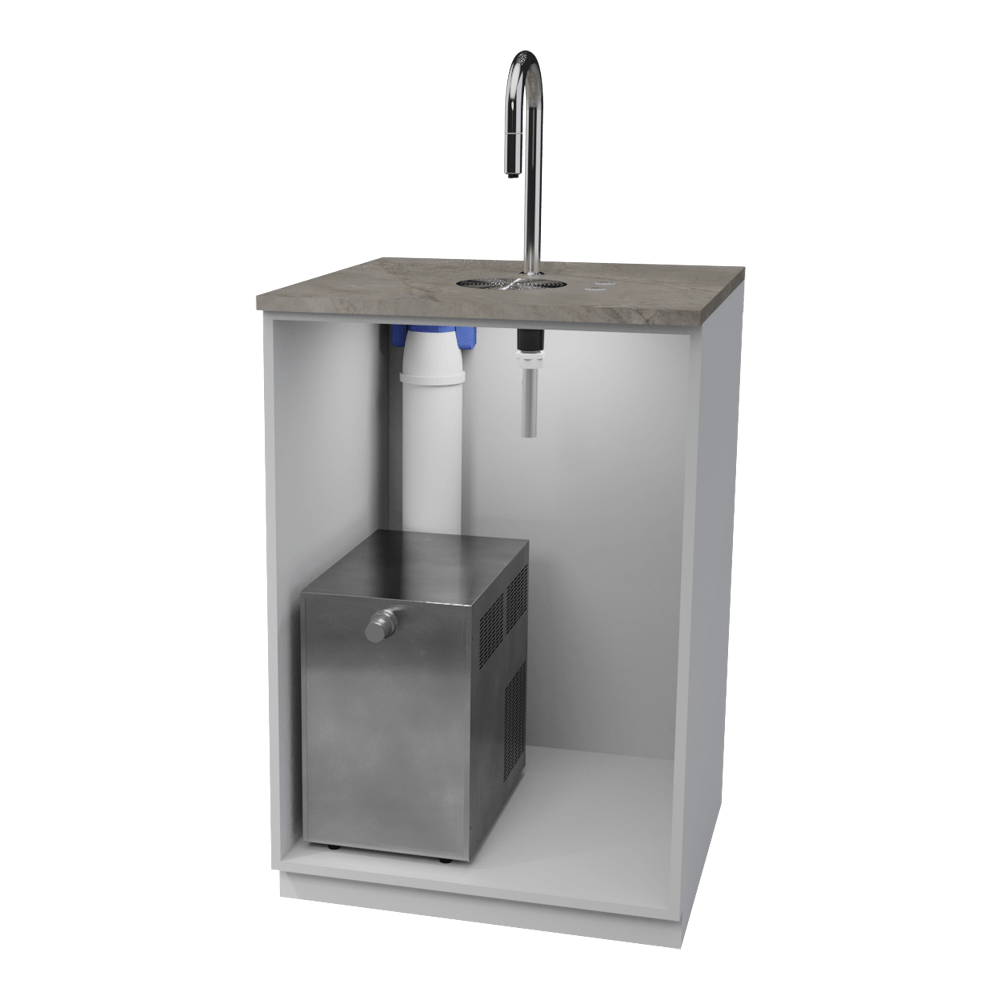

The illustration shows a 600mm standard cupboard.
Power supply
1 x 10 amp, 2 socket splitter for Cooler and ventilation
Mains water supply
1 x Washing machine valve 15mm x ¾”
Waste
1 x Vertical Ø 40mm waste stack with standard u-bend or Hepvo valve trap
Ventilation
Ducted fan, via duct channels
Colour options
iPad holder options
Chose between the standard inlay iPad holder or deluxe Boxit iPad holder to match your design
Get a quote
Let us help you find the perfect TopWater configuration. Please do not hesitate to contact us for help configuring the right solution for your project. Get in touch to arrange a chat with one of our specification experts.
